WebGL Strategy RPG Engine

Screenshot of terrain generated from Perlin noise — Terrain generated from Perlin noise

Overview#

Created for CS488 (Introduction to Computer Graphics) during Fall 2011 at the University of Waterloo as a final project. This marks the second time that I've taken this course. Against all odds, I somehow managed to miss the exam during my first course attempt, and was assigned a Fail outright. I'm pleased to announce that I have since passed this wonderfully fun course!

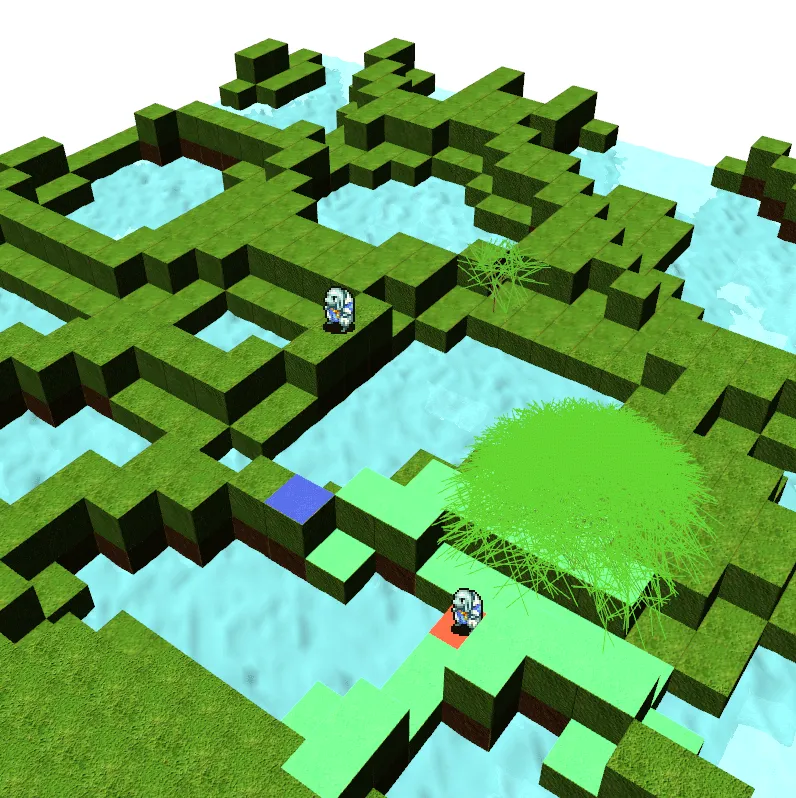

Screenshot of terrain and sprites — Sprite shaders for characters, pathfinding algorithm highlit in green, and L-system 'trees'

The focus was on procedural generation, completely framework free code. It was primarily an exploration in real-time interactive graphics, utilizing only shaders and modern graphics techniques.

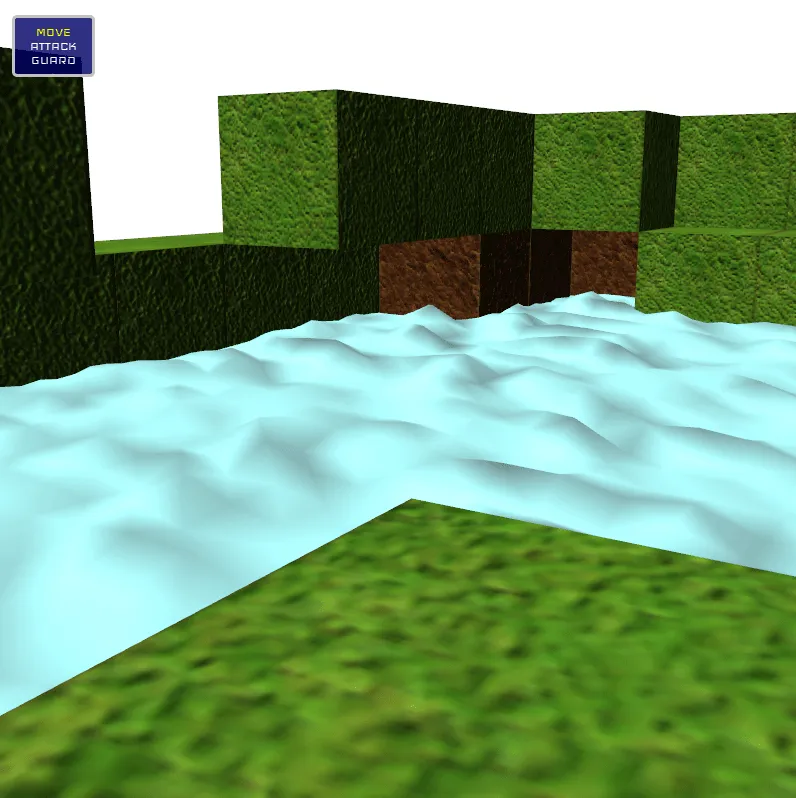

Screenshot of water — I displaced a mesh with some noise and sin/cos to create the appearance of moving waves

I did not meet all of the objectives I set for myself, but I was able to explore: texture mapping, texture atlasing, bump mapping, procedural terrain, water reflections, animations using Catmull-Rom splines, Phong shading/lighting model, WebGL, OpenGL ES 2.0, AI pathfinding, Perlin noise, and context-free trees.

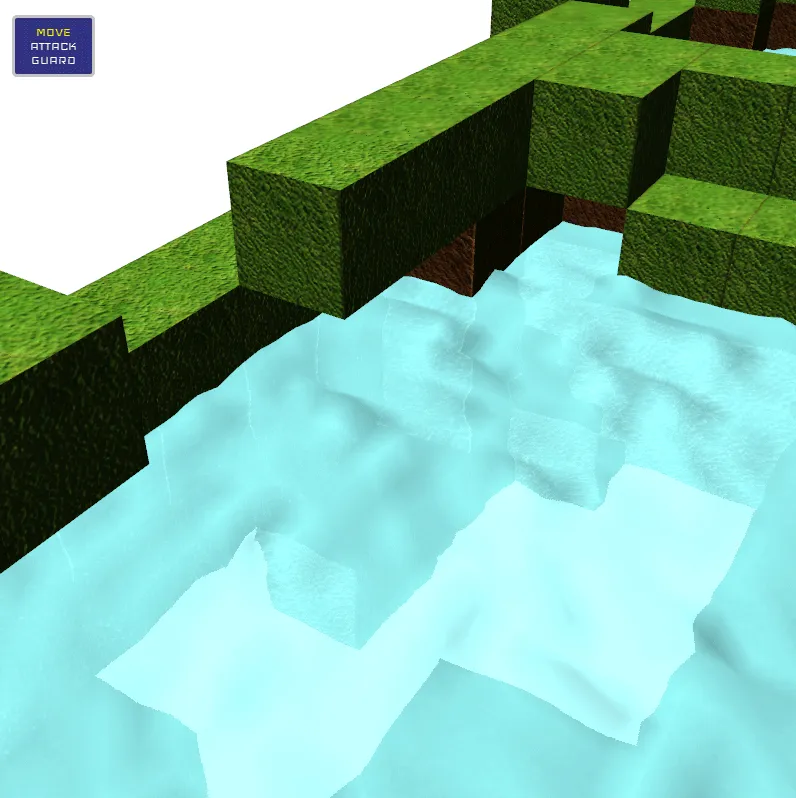

Screenshot of water reflections — Simple reflections by flipping the world about a plane
